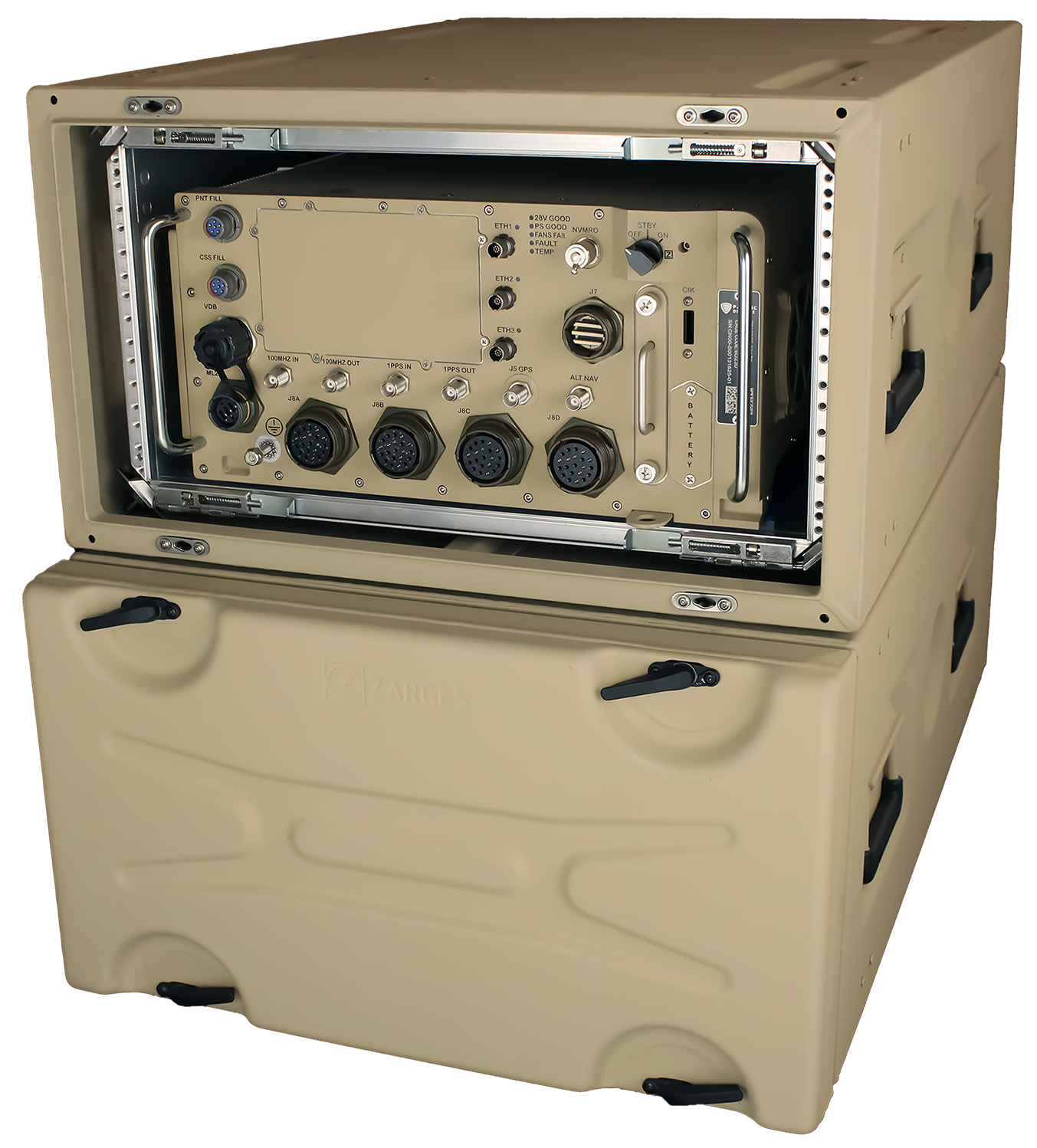

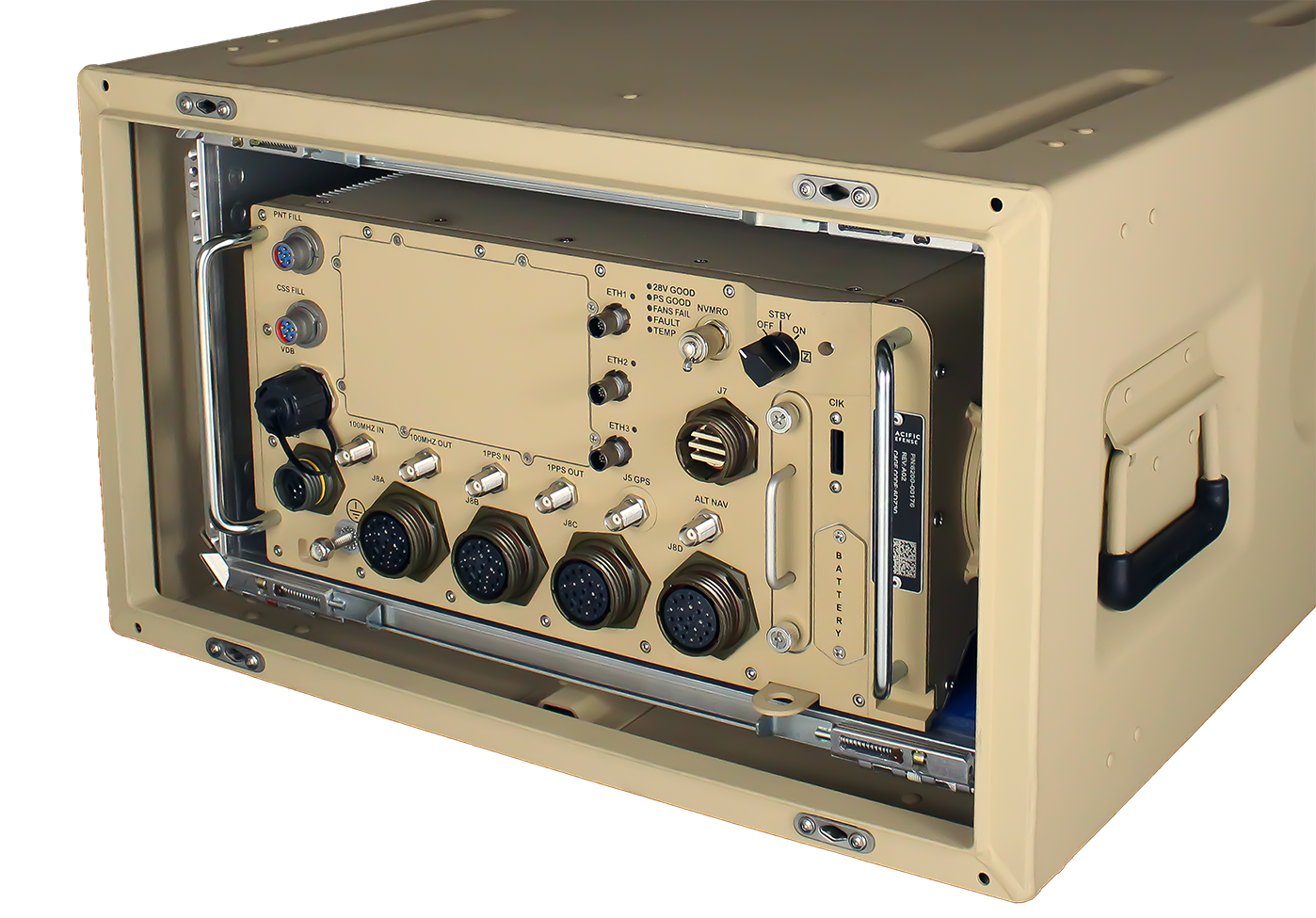

EWS1090VP
Multi-Function Electronic Warfare System
The EWS1090VP is a Modular Open Systems Approach (MOSA) electronic warfare (EW) solution providing warfighters with configurable, out-of-the box EW capabilities to deal with the rapidly changing threat environment via a unified, EWO-friendly graphical user interface (GUI). This multi-mission, commercial off-the-shelf (COTS) EW system built on the legacy SX-1000 platform and aligned with the CMOSS, SOSA™, and OpenVPX™ technical standards represents a significant step forward in the modernization of EW capabilities across services.
As a part of Pacific Defense’s EW and signals intelligence (SIGINT) family of mission systems known as SABER, the EWS1090VP provides simultaneous processing of communications and non-communications threats, direction finding and geolocation, and active and reactive electronic attack (EA). The EWS1090VP includes wideband software-defined radios (SDRs) to address frequency agile threats in congested environments, which are constantly evolving and becoming resilient to traditional EW countermeasures. Its CMOSS/SOSA alignment minimizes the time to add new capabilities through the addition of state-of-the-art software or hardware modules, including those from third-party vendors. This delivers significant advantages in terms of modularity, rapid deployment of new capabilities, speed of technology refresh, and lower cost in comparison to traditional proprietary EW systems.
Key Features
General
System automation, including advanced multi-card scheduling for simultaneous threat engagement
Integrated direction finding and geolocation processing
Active and reactive Electronic Attack
Secure networked remote EW sensor provisioning as well as Command and Control (C2)
Secure collaborative autonomous processing for in-mission application loading and reconfiguration
Advanced systems processing with Artificial Intelligence (AI) and Machine Learning (ML) to improve system performance, reduce system false-alarms, and minimize operator workload
Compute/Processing
Wideband SDR Transceiver dual independent TX and RX channels, 5 MHz to 18 GHz of tunable RF front-end and 160 MHz IBW per channel
Ultra-Wideband SDR, dual independent TX and RX channels, up to 18 GHz of tunable RF front-end and 1 GHz IBW per channel (selectable BW)
Intel® Xeon® W series (Tiger Lake) processor for mission command and system management
Intel® Xeon® D series (Ice Lake) processor for NetOps and other compute intensive applications
NVIDIA® Ampere™ A4500™ high-performance computing graphics processing unit (GPU) for xxx
Networking
1/10/40/100G Ethernet provides route, switch, and compute
Supports L2/L3 and some L4 network protocols
Positioning/Navigation (PNT)
Assured PNT services with multiple sensors and sensor fusion
1PPS/100MHz reference timing source
Enhanced M-Code GPS/IMU position accuracy
Internal CSAC/Rb MAC for time/frequency holdover
Connectivity
Multiple RF radio antenna interfaces
MORA Low Latency Bus (ML2B)
VICTORY Data Bus (VDB)
Timing, GNSS and ALTNAV antenna interfaces
PNT Fill
Crypto Sub-system (CSS) Fill
General user interfaces (e.g. Ethernet, USB, Display Port, etc.)
NVMRO
Customizable to support legacy interfaces (optional)
Chassis Management
Integrated Chassis Manager module
Storage
Provision for a removable storage device
Cooling Fan
Low noise cooling fan solution
Software Applications/Tools
Pacific-Defense Electronic Warfare & SIGINT system (PD-EWS)
Modular Open Radio Frequency Architecture (MORA) enabled tools
Common Services
Active Effects
Tactical Assault Kit
CharybdisOS™ SOSA-aligned operating environment
Support for optional software
Common Framework Environment (CFE)
Electronic Warfare Operating Kit (EWOK)
Open Mission Systems (OMS)
Big Iron
3dB Labs Sceptre
Mounting
Integrated in a transit case for dismounted missions
Accessories
Breakout cables provided with each system
Direction Finding (DF) and/or Directional EA antenna options
RF power amplifier options
Specifications
Dimension (approximate)
16”(L) x 16”(W) x 9”(H)
Weight
Transit case assembly: 48 lbs
Power
28V DC chassis input voltage
12V DC only power distribution to plug-in cards
600W (max) power consumption
Electronic Attack Power
Mission application configurable
PIC Form Factor
3U OpenVPX
Slot Profile
SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-4
SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16
SLT3-SWH-6F1U7U-14.4.14
SLT3-SWH-5F4UG7U-14.4.14
SLT3x-TIM-2S1U22S1U2U1H-14.9.2-1
VITA 62 SOSA-aligned
Customizable to other aperture options
Environmental
Hybrid cooling ruggedized to meet MIL-STD-810G
Highly efficient thermal design for conduction cooled PICs
VITA 48.2 conduction cooled PICs
Standards
MOSA
U.S. Army CMOSS
The Open Group SOSA™
OpenVPX™
MORA
VICTORY
US Military Standard
MIL-STD-810G
MIL-STD-461C
