RCH9140VP

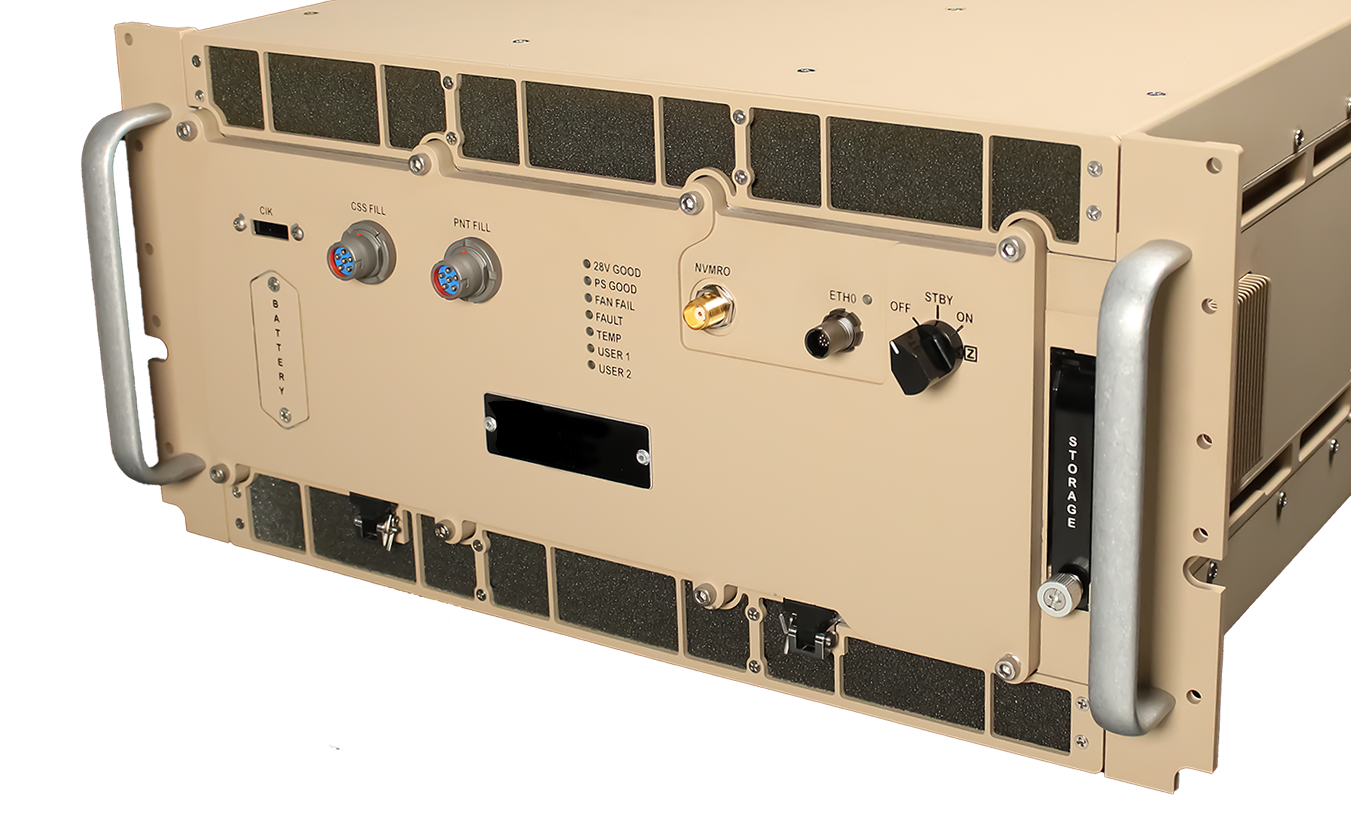

14-Slot OpenVPX™ Rugged Chassis
The RCH9140VP front-loading chassis family provides rugged, scalable, high-performance, multi-function infrastructure for the most demanding defense, aerospace, and commercial systems aligned with the CMOSS, SOSA™, and OpenVPX™ technical standards. With a 14-slot configuration and enhanced processing features, the RCH9140VP supports secure enclave operations and efficient system integration for Cyber, EW, SIGINT, Edge Compute, and Comms applications across diverse platforms.
Designed to meet rigorous MIL-STD-810H and MIL-STD-461G standards, the RCH9140VP chassis family is available in a variety of mounting configurations including rack-mount, vehicle-mount, and pod-mount. Pod-mount configurations offer reduced height, redirected air flow, and Agile Pod mounting brackets. Its front-loading design allows for convenient access and configuration, while compliance with VPX REDI conduction cooling standards ensures optimal thermal management. The chassis incorporates a 100 Gbps Ethernet-capable backplane, while accommodating up to eight mission-specific payload plug-in cards, two Ethernet switch cards, a timing card, an I/O Intensive payload single board computer, and two power supply cards.
Key Features
Front Panel
Out-of-band Ethernet interface (copper)
NVMRO
Built-in cryptographic key fill, ignition key fill, and zeroize switch
Rear Panel
RF signal inputs/outputs, 32 RF channels
Modular Open Radio Frequency Architecture (MORA) Data Bus
Vehicular Integration for C5ISR/EW Interoperability (VICTORY) Data Bus
PNT clock and timing
High-speed user interfaces
Discrete I/O
DC power input
Card Access
Front loading plug-in cards access
PIC Configuration
Accommodates 3U VPX plug-in cards
8 mission specific payload cards
1 I/O intensive SBC card
2 Ethernet switch card
1 timing/PNT card
2 power supply cards
Chassis management
Integrated Chassis Manger module
Power Supply
Dual power supply arrangement for high supply current capacity
Storage
Provision for a removable storage device
Cooling Fan
Low noise cooling fan solution
Mounting
Comes with a rack mounting hardware and slide rails
Accessories
Breakout cables provided with each chassis
Specifications
Backplane Interface
Fat pipes (FP) support up to 100 Gb/s for high data throughput and response time
Ultra-thin pipes (UTP) support up to 25 Gb/s
Dimension (approximate)
16”(W) x 17”(D) x 8.7”(H), without mounting hardware
Weight (approximate)
53 lbs, without mounting hardware
Power
28V DC chassis input voltage
12V DC only power distribution to plug-in cards
1200W (max) power consumption
PIC Form Factor
3U OpenVPX
Slot Profile
SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-4
SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16
SLT3-SWH-6F1U7U-14.4.14
SLT3-SWH-5F4UG7U-14.4.14
SLT3x-TIM-2S1U22S1U2U1H-14.9.2-1
VITA 62 SOSA-aligned
Customizable to other aperture options
Environmental
Hybrid cooling ruggedized to meet MIL-STD-810G
Highly efficient thermal design for conduction cooled PICs
VITA 48.2 conduction cooled
Standards
MOSA
U.S. Army CMOSS
The Open Group SOSA™
OpenVPX™
MORA
VICTORY
US Military Standard
MIL-STD-810G
MIL-STD-461C
Complementary Product
SX-923 9-Slot Side
Loading Chassis
Aligned to SAVE technical standard
Analog and digital radiohead support
Customizable front panel user interface
SX-124 Assured Positioning/Navigation/ Timing Card
1PPS/100MHz reference timing sources
Powerful sensor fusion engine
Support for an M-Code GPS receiver
