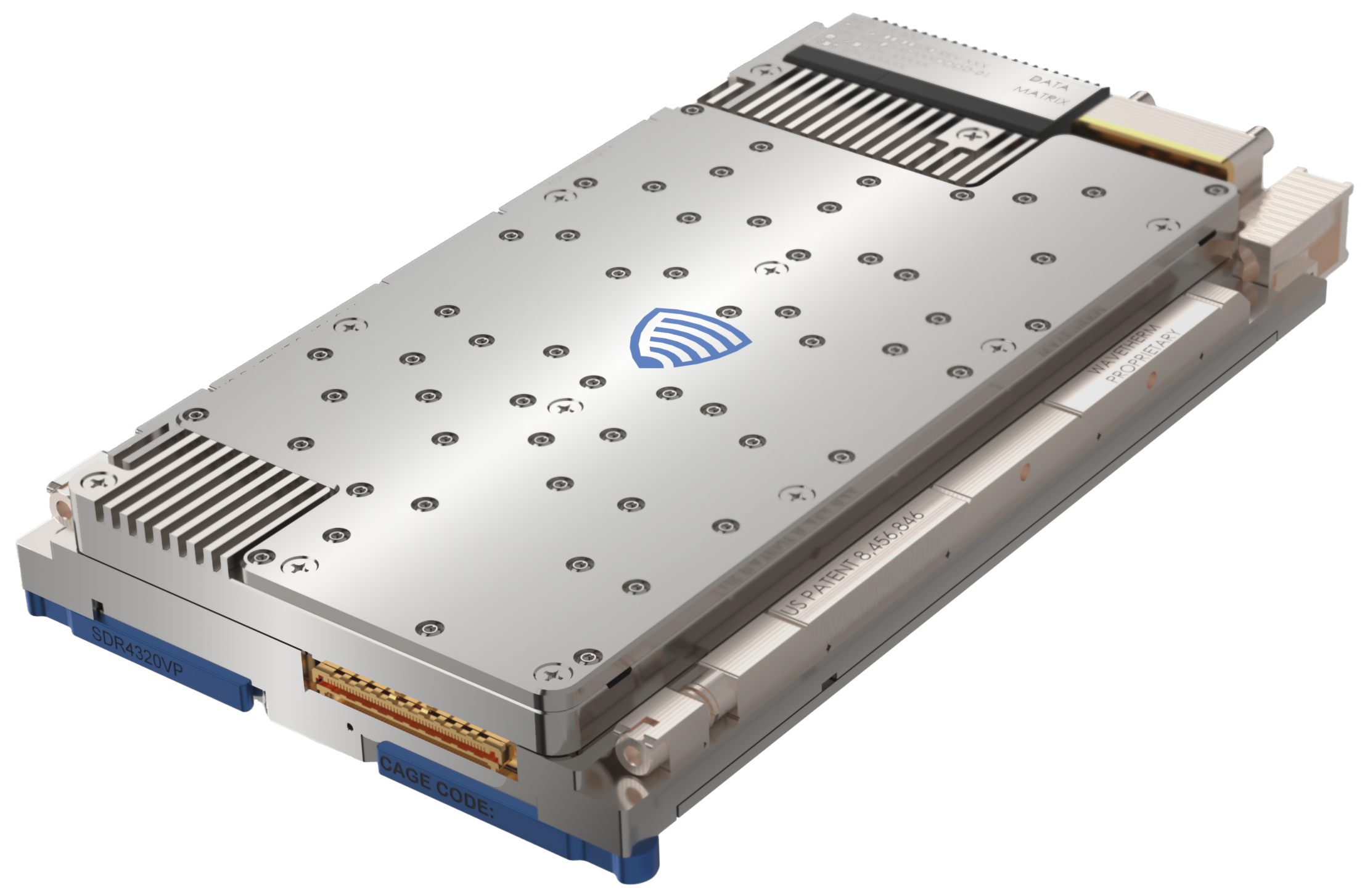

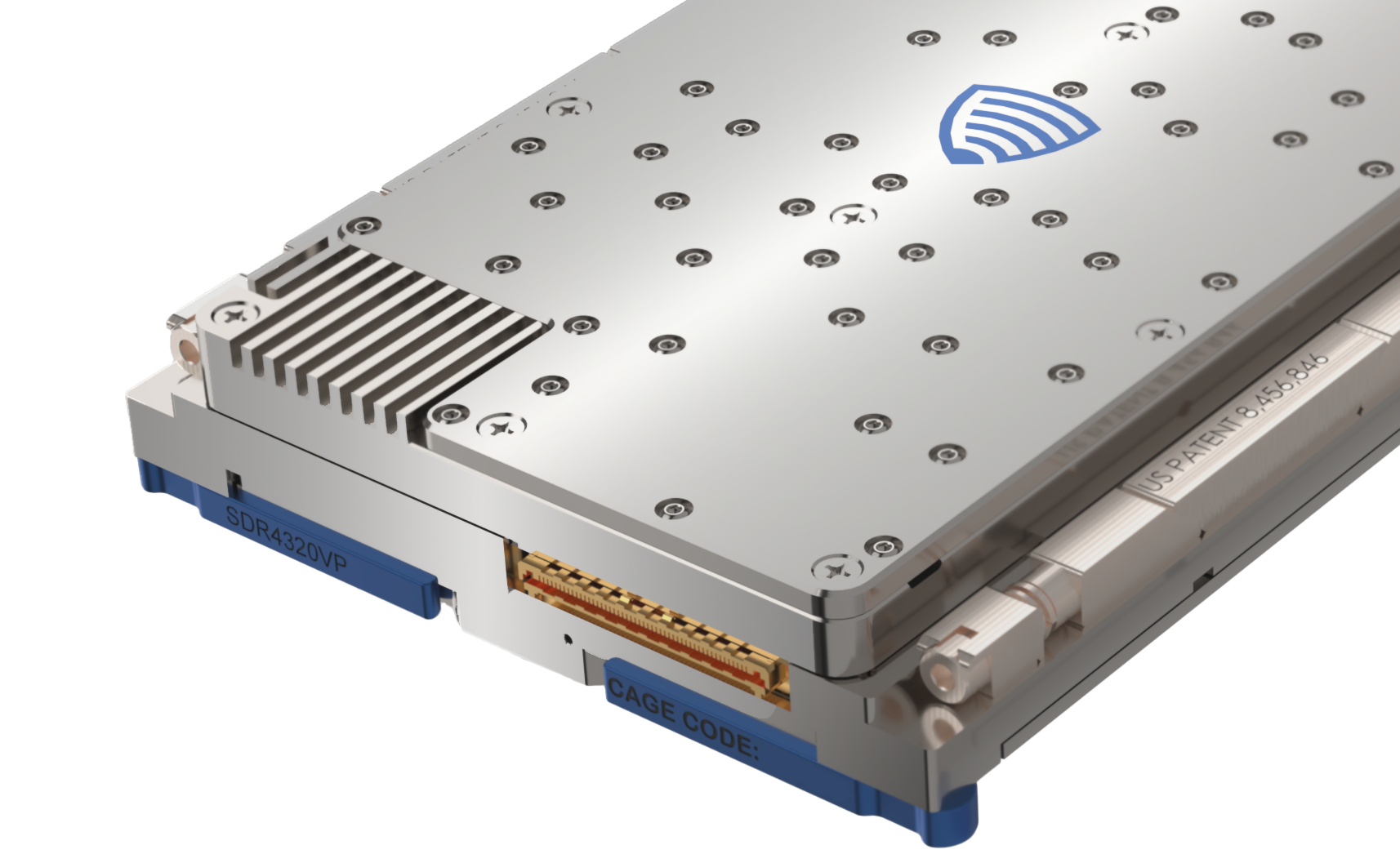

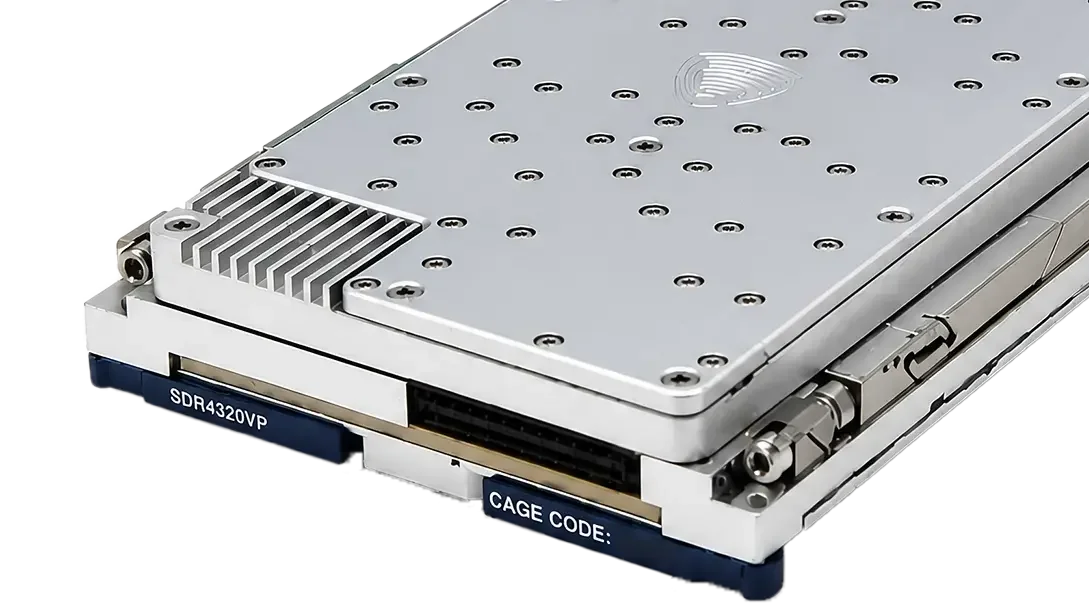

SDR4320VP
Ultra-wideband SDR Transceiver
The SDR4320VP is a high-performance, quad-channel, ultra-wideband software defined radio (SDR) transceiver aligned with the SOSA™ and CMOSS technical standards that operates up to 18 GHz input frequency and 1 GHz instantaneous analog bandwidth. This 3U OpenVPX plug-in card comes with significant onboard FPGA resources and data rates up to 100 Gbps for high performance real-time processing. Optimized for SWaP-constrained payloads, the SDR4320VP seamlessly integrates into existing EW / SIGINT / Radar / Cyber mission systems, autonomous platforms, and distributed sensor network applications for use on Air, Land and Sea platforms.
Centered around a leading-edge high-performance Radio Frequency System-on-Chip (RFSoC) from AMD Zynq™ UltraScale+™ family of devices, the SDR4320VP facilitates a software defined signal chain enabling rapid deployment of new waveforms, jamming techniques, radar modes, and adaptive direction-finding algorithms - without hardware changes. In its default configuration, the SDR4320VP is compliant to the ANSI VITA 48.2 mechanical standard for VPX REDI conduction cooling and ECC3 environmental class per VITA 47 standard.
Key Features
Powered by AMD Zynq UltraScale+ RFSoC
Dual independent TX and RX channels
100GBASE-KR4, 10GBASE-KR, and PCIe Gen3 backplane support
Intelligent Platform Management Interface (IPMI) System Management
Supports multi-card, phase coherency for geolocation and beamforming
Programmable DDCs
Supports 100 GbE ML2B real-time bus and MORA transport layer
Comprehensive Embedded Development Kit (EDK) and Software Development Kit (SDK)
Specifications
Frequency
10-18000 MHz
Bandwidth
Instantaneous bandwidth dependent on the RF input frequency
1000 MHz for RF input greater than 2000 MHz
> 250-500 MHz for RF input below 2000 MHz
Power
80W (typical estimate) power consumption
Max input signal power +20 dBm without damage
Output signal power +10 dBm (nominal)
Signal power adjustment range 36 dB in 1 dB steps
Memory
8 GB of total DDR4 memory
Data Converters
14 bits I/Q ADC/DAC resolution
3U OpenVPX
Form Factor
SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-4
Customizable to other aperture options
Slot Profile
Environmental
VITA 48.2 conduction cooled
Standards
MOSA
U.S. Army CMOSS
The Open Group SOSA™
OpenVPX™
MORA
VICTORY
