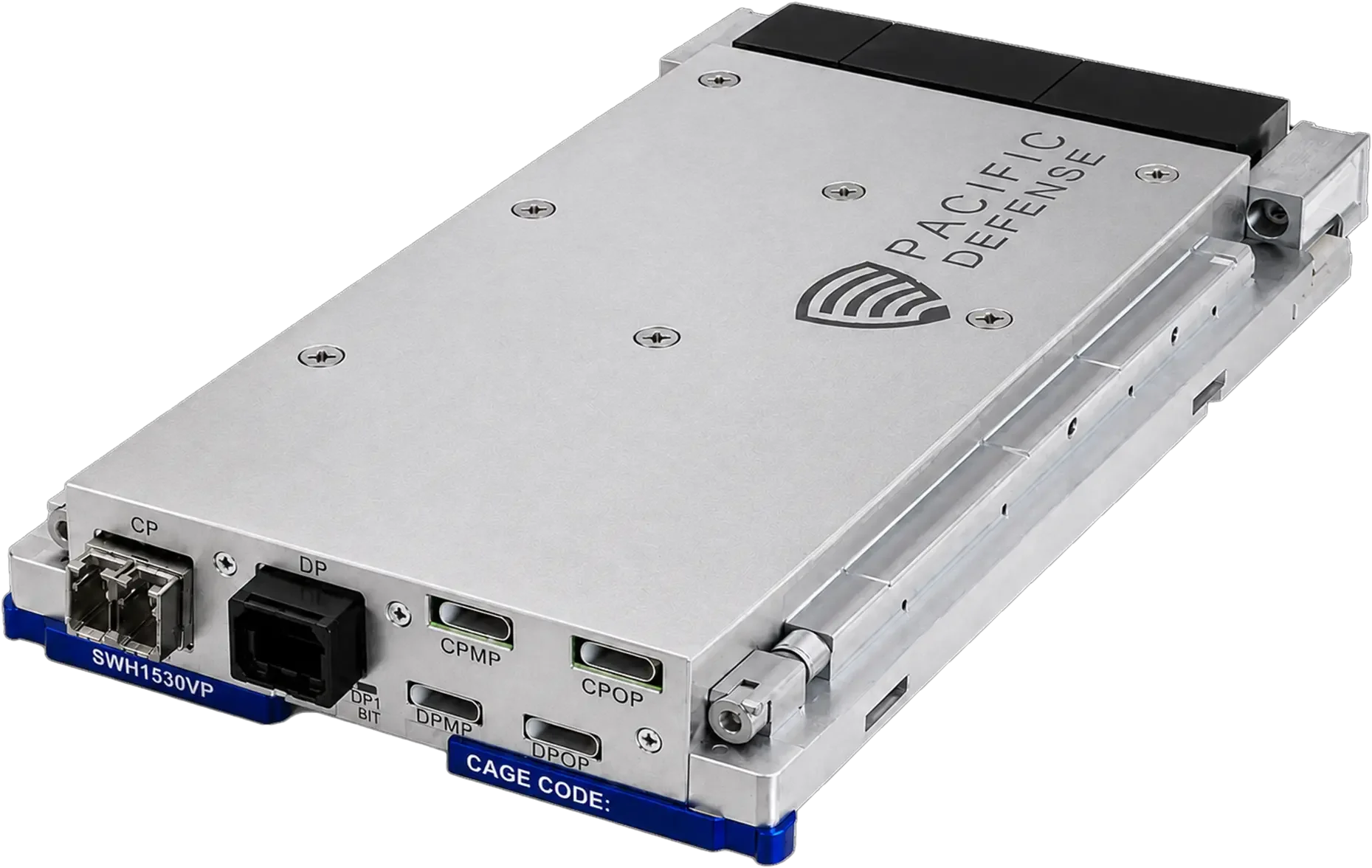

SWH1530VP
100G Ethernet Switch
The SWH1530VP is the next generation high-speed, low Size, Weight, and Power (SWaP) 100/40 GbE Ethernet switch aligned with the SOSA™ Technical Standard. This 3U VPX plug-in card supports both Data Plane and Control Plane switching capabilities to facilitate high-speed time-sensitive switching across two physically separated enclaves, accelerating security certification. With a combination of interoperability, time-synchronization and determinism on the Control Plane and up to 100 Gbps data rates supported on the Data Plane, the SWH1530VP is ideally suited for dual-use, commercial and defense, applications deployed across Air, Land, and Sea platforms.
Based on leading-edge high-performance switch fabrics from Marvell’s Prestera® Aldrin2 and Ironman families of Ethernet switch devices, the SWH1530VP delivers advanced standards-based Layer 2/Layer 3 switching with support for select Layer 4 network protocols and an integrated web-based network management suite. The next generation Ironman-based Control Plane switch significantly expands networking capabilities with enhanced auto-negotiation support, IEEE 1588 Precision Time Protocol (PTP) Transparent Clock functionality, integrated MACsec security acceleration, and a roadmap for future Time Sensitive Networking (TSN) software feature enablement.
The Pacific Defense SWH1530VP Ethernet switch provides a modular, open-architecture secured networking foundation for mounted mission systems aligned with the U.S. Army’s CMOSS Mounted Form Factor (CMFF) Mounted Common Infrastructure (MCI) objectives.
Key Features
Two physically separated secure enclaves for dual-domain security isolation
Multi-layer L2/L3+ switching/routing
VLAN support for 802.1Q tagging, port mirroring, MAC-based filtering and access control
Ingress filtering
Loop prevention and redundant path management via RSTP and MSTP
Static IPv4/IPv6 routing available today, OSPFv2/v3 and RIPv2/RIPng with remote routing table configuration on a roadmap
QoS with 802.1p Priority Code Point and IP DSCP
Access Control Lists (L2, L3, and L4)
Multicast with IGMPv3 snooping and MLDv2 snooping
Local authentication, RADIUS/TACACS+ remote management authentication, and IEEE 802.1X Port-Based Network Access Control (PNAC)
Link-layer security supports IEEE 802.1AR Device Identity (DevID) for secure device identification and encrypted Ethernet communications with 256-bit encryption, and IEEE 802.1AE MACsec with 802.1X MACsec Key Agreement (MKA) in the near future
IEEE 802.3ap auto-negotiation, Reed-Solomon and Firecode forward error correction for 10G/40G/100G port modes
On-board management software provides command line interface (CLI), graphical user interface (GUI), and SNMP for configuration and monitoring
Intelligent Platform Management Interface (IPMI) System Management
Specifications
Backplane Interface
Data Plane: 6x Ethernet ports
4x ports support 1/10/40/100 Gbps
2x ports support 1/10/40 Gbps
Control Plane: 7x 1/10 Gbps Ethernet ports

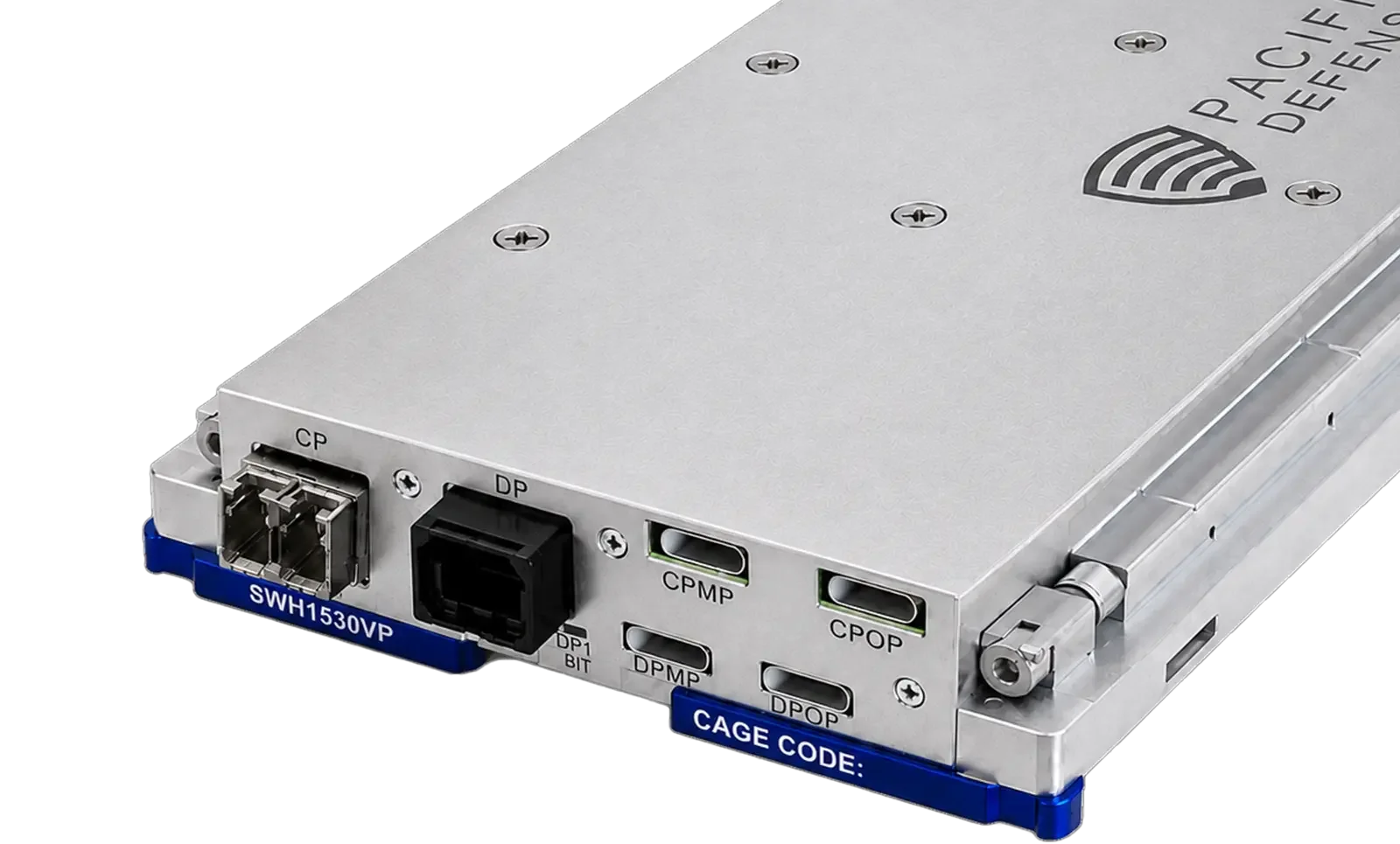

Front Panel Interface
Data Plane: 3x Ethernet ports (one physical connector)
2x ports support 1/10/40/100 Gbps
1x ports support 1/10/40 Gbps
Control Plane: 1x 1/10 Gbps optical Ethernet port
Clocking
P2P/E2E transparent clock per IEEE 1588 PTPv2
Hardware provision for Time Sensitive Networking (TSN) via software update
3U OpenVPX
Form Factor
SLT3-SWH-6F1U7U-14.4.14
SLT3-SWH-5F4UG7U-14.4.14
Slot Profile
Environmental
VITA 48.2 conduction cooled
Standards
MOSA
U.S. Army CMOSS
The Open Group SOSA™
OpenVPX™
Complementary Products

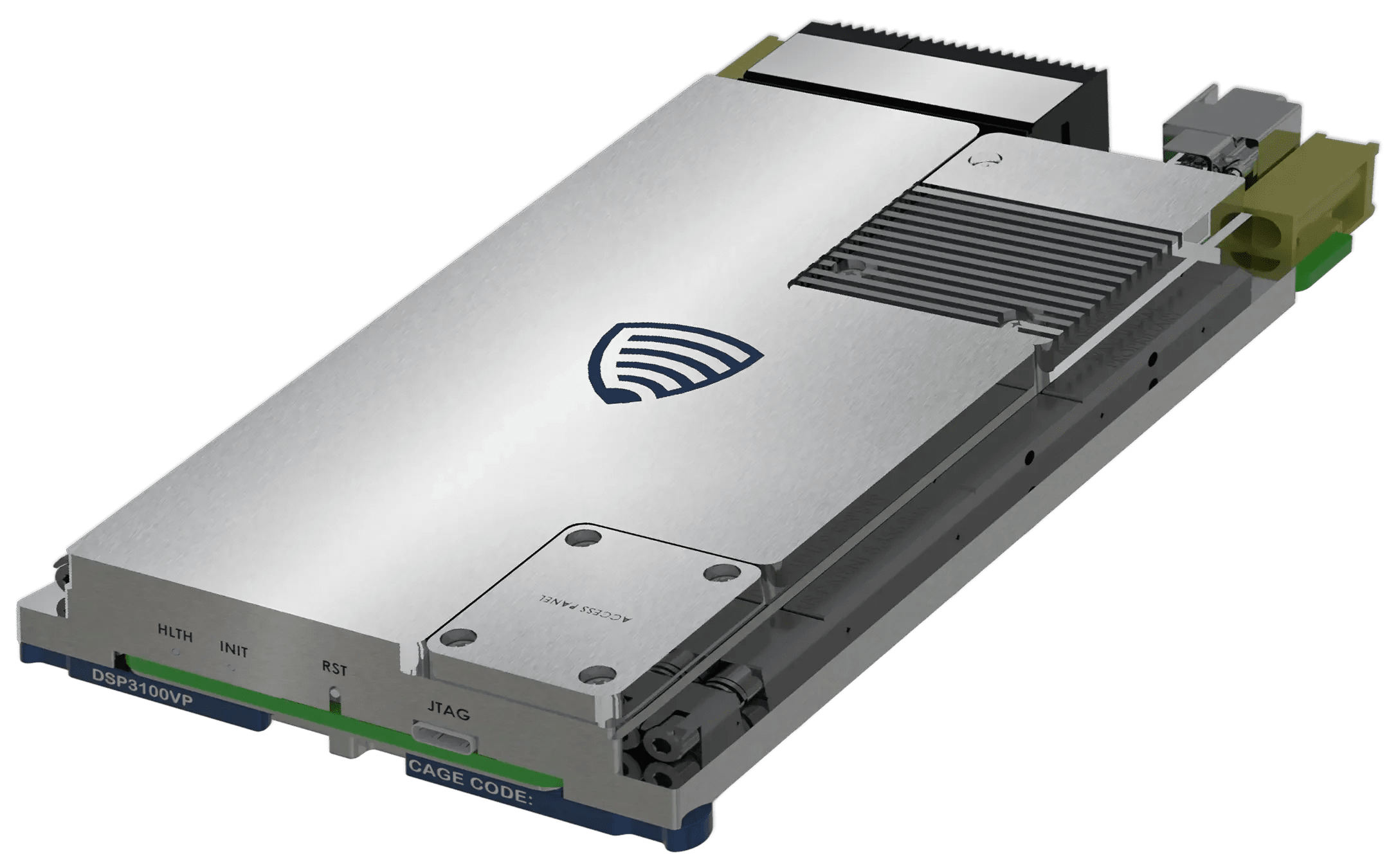

DSP3100VP Versal Gen 2 Digital Signal Processor
Versal AI Edge Series Gen 2 Adaptive SoC
Heterogeneous acceleration at the edge
40 GB of LPDDR5 memory

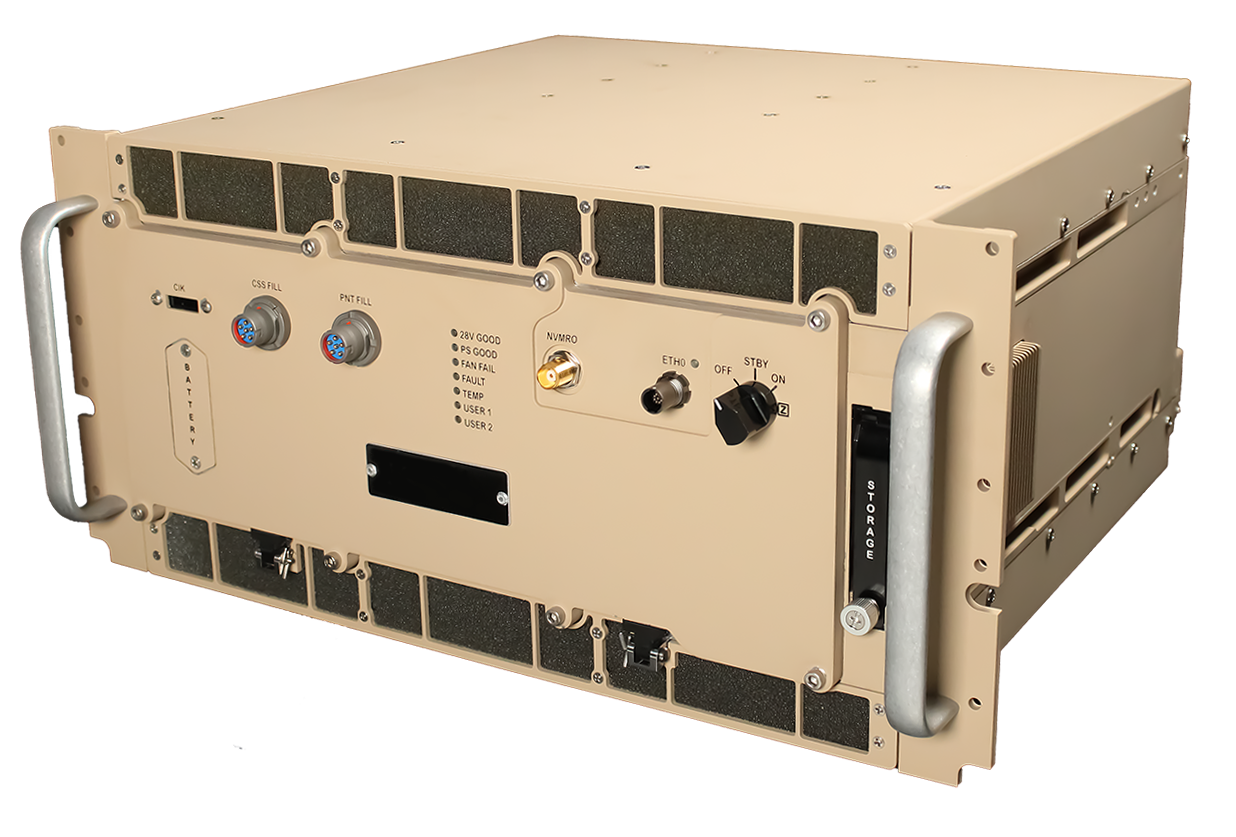

RCH9140VP 14-Slot Rugged Chassis
