RCH9090VP

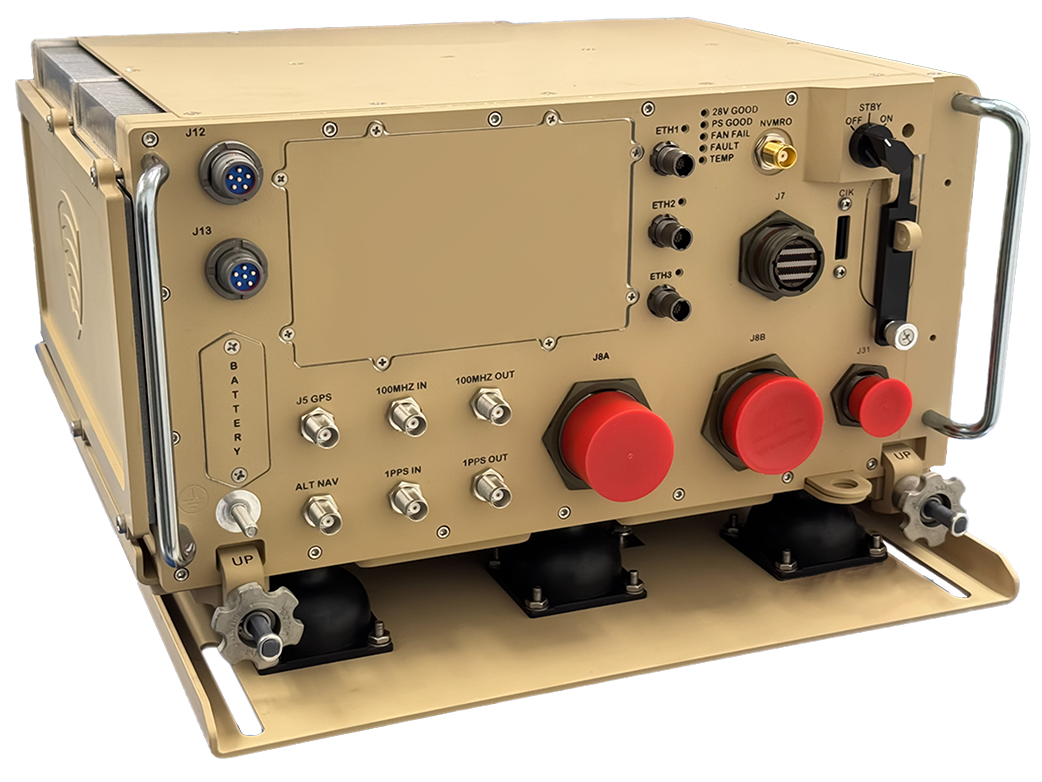

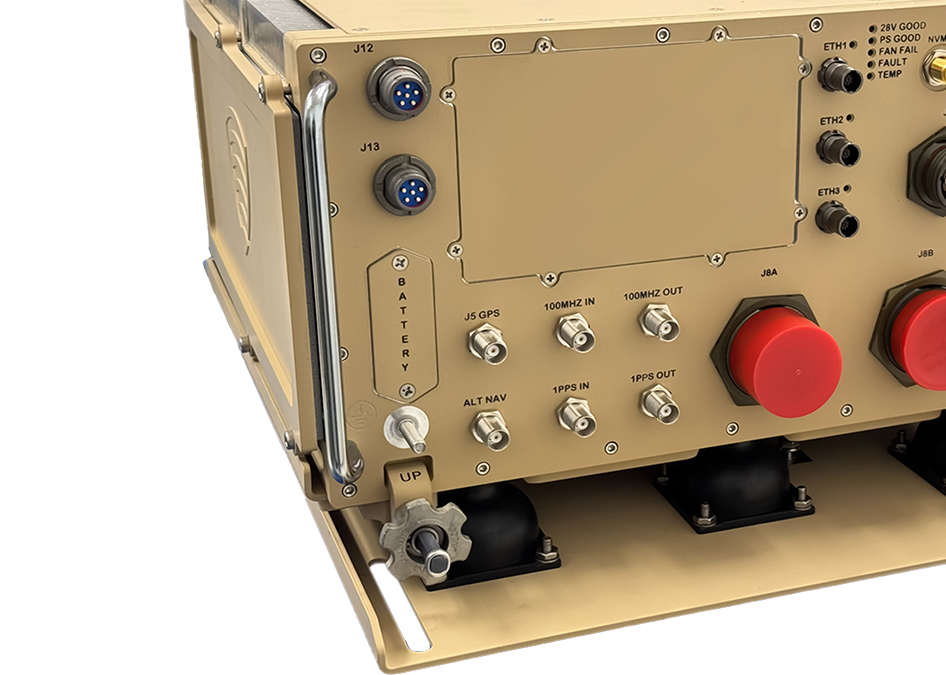

Rugged 3U VPX 9-Slot Chassis
The RCH9090VP is a next-generation, rugged 3U VPX chassis engineered for demanding deployed computing and C5ISR applications. Building on the proven architecture of Pacific Defense’s SX-923, the RCH9090VP provides a high-performance 9-slot platform for scalable, mission-ready processing and networking. The chassis is aligned with CMOSS, SOSA™, OpenVPX™, and Standardized A-Kit / Vehicle Envelope (SAVE) technical standards, enabling interoperability, modularity, and long-term technology insertion.
Designed for harsh environments, the RCH9090VP combines ruggedized construction with an optimized architecture for high-density 3U VPX systems. Its next-generation design is optimized for cost while providing the flexibility and performance required for evolving mission requirements. The platform supports rapid integration of commercial and defense-oriented VPX technologies, helping reduce development risk and simplify future upgrades.
Key Features
Front Panel
RF signal inputs/outputs
Modular Open Radio Frequency Architecture (MORA) Vehicular Integration for C5ISR/EW Interoperability (VICTORY) Data Bus
PNT clock and timing
Built-in cryptographic key fill, ignition key fill, and zeroize switch
Radiohead Configuration
Support for analog radiohead interfaces via D38999 connectors
Card Access
Side loading plug-in cards access
PIC Configuration
Accommodates 3U VPX plug-in cards
5 mission specific payload cards
1 I/O intensive SBC card
1 Ethernet switch card
1 timing/PNT card
1 power supply card
Chassis management
Integrated Chassis Manger module
Power Supply
Support for a 3U SOSA-aligned VITA 62 plug-in module
Storage
Provision for a removable storage device
Cooling Fan
Low noise cooling fan solution
Mounting
Comes with a mounting tray for harsh environments
Accessories
Breakout cables provided with each chassis
Specifications
Backplane Interface
Fat pipes (FP) support up to 100 Gb/s for high data throughput and response time
Ultra-thin pipes (UTP) support up to 25 Gb/s
Dimension (approximate)
16”(L) x 16”(W) x 9”(H)
Weight (approximate)
Chassis assembly: 37 lbs
Mounting tray: 21 lbs
Power
28V DC chassis input voltage
12V DC only power distribution to plug-in cards
600W (max) power consumption
PIC Form Factor
3U OpenVPX
Slot Profile
SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-4
SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.13-0
SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16
SLT3-SWH-6F1U7U-14.4.14
SLT3-SWH-5F4UG7U-14.4.14
SLT3x-TIM-2S1U22S1U2U1H-14.9.2-1
VITA 62 SOSA-aligned
Customizable to other aperture options
Environmental
Hybrid cooling ruggedized to meet MIL-STD-810G
Highly efficient thermal design for conduction cooled PICs
VITA 48.2 conduction cooled
Standards
MOSA
U.S. Army CMOSS
The Open Group SOSA™
OpenVPX™
MORA
VICTORY
US Military Standard
MIL-STD-810G
MIL-STD-461C
